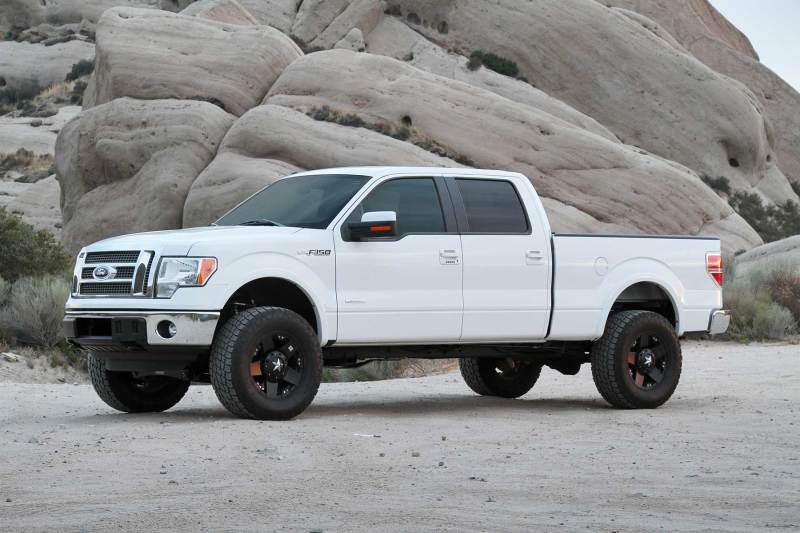

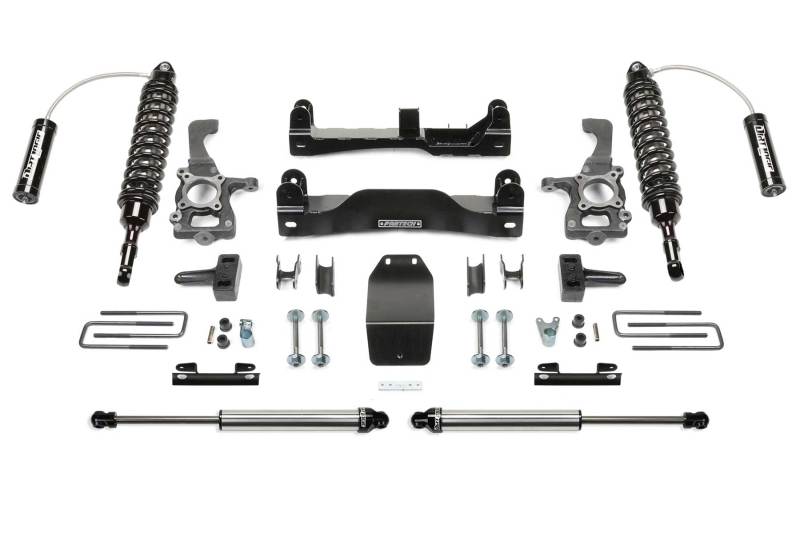

Fabtech 09-13 Ford F150 4WD 4in Perf Sys w/Dlss 2.5 C/O Resi & Rr Dlss

Manufacturer Part # : K2198DL

Market Description

• Fabtech's 4'' F150 system utilizes their proven heavy duty construction and design features found in their 6'' systems but with less lift and at a much lower price. This 4'' System allows use of 35'' tall tires and features high arched lower control arm crossmembers constructed of 1/4 “ thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration. The Performance System features Dirt Logic 2.5 Coilover front shocks and Dirt Logic 2.25 rear shocks for aggressive offroad capabilities with a smooth highway ride. The 4'' System allows use of 33'' or 35'' tires and is ESC (Electronic Stability Control) and Traction Control compliant.
• Fabtechs development capabilities are second to none with over 20 years of experience in aftermarket suspension design. State of the art software, fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market. Proper design in suspension development is key in providing a quality, trouble free product to the end consumer. Fabtech leads the industry with extensive research, design technology and rigorous testing that results in the highest performing, finest quality suspension system for the discerning offroad enthusiast.

Associated Comments

TIRE SIZE - 35/12.50R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/60R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/70R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING

Product Description - Extended

• Performance Lift System; 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic Shocks;
• 4" PERF SYS W/DLSS 2.5 C/O RESI & RR DLSS 2009-13 FORD F150 4WD.

Product Description - Short

• Fabtech 09-13 Ford F150 4WD 4in Perf Sys w/Dlss 2.5 C/O Resi & Rr Dlss
• 4" PERF SYS W/DLSS 2
• Lift Kit-Suspension

Product Description - Long

• 4" PERF SYS W/DLSS 2.5 C/O RESI & RR DLSS 2009-13 FORD F150 4WD
• Performance Lift System

Features and Benefits

• Everything You Will Need To Lift Your Vehicle
• No Driveshaft Change Required For Auto Trac
• Allows Use Of Stock Tires And Wheels
• Retains Factory Steering Centerlink
• Retains Factory Upper Control Arms
• Increased Caster For More Control
• Quick No Weld Installation

Product Description - Invoice

Fabtech-4" PERF SYS W/DLSS 2

AAIA Part Type Description

Suspension Lift Kit
