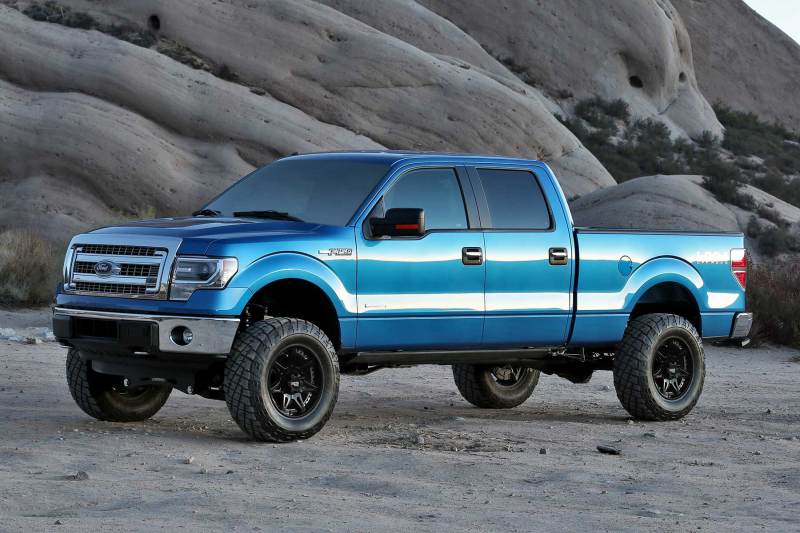

Fabtech 2014 Ford F150 4WD 6in Perf Sys w/Dlss 2.5 C/O & Rr Dlss

Manufacturer Part # : K2189DL

Market Description

• Ford's 2014 F150 has been updated with slight changes to the suspension platform and Fabtech has taken advantage of this by developing an affordable 6'' Suspension System. This new system includes heavy duty 1/4'' thick steel lower control arm crossmembers with an integrated front differential skid plate for protection and increased front suspension strength. Fabtech extended length ductile iron steering knuckles allow use of 18'', 20'' or 22'' Wheels. Includes Dirt Logic 2.5 Stainless Steel Coilovers featuring Eibach coil springs in the front and Dirt Logic Stainless Steel 2.25's in the rear for aggressive offroad driving. This system comes with Fabtech's 5/60 Powertrain warranty, five years or 60,000 mile warranty on the vehicle with a Fabtech'suspension. Estimated installation time - 4 hrs. No drilling or welding required.
• Fabtechs development capabilities are second to none with over 20 years of experience in aftermarket suspension design. State of the art software; fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market.

Associated Comments

TIRE SIZE - 35/13.50R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/13.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 285/55R22 Wheel - 22X11 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; 14. CAN NOT USE OEM Wheel AND TIRE.; 47. FITS SUPERCREW ONLY.; 12WILL NOT FIT RAPTOR MODELS.

Product Description - Short

• Fabtech 2014 Ford F150 4WD 6in Perf Sys w/Dlss 2.5 C/O & Rr Dlss
• 6" PERF SYS W/DLSS 2
• LftKt-Suspw/Shock

Product Description - Extended

• Performance Lift System w/Shocks; w/DLSS Shocks; 6 in. Lift;
• 6" PERF SYS W/DLSS 2.5 C/O & RR DLSS 2014 FORD F150 4WD.

Product Description - Long

• 6" PERF SYS W/DLSS 2.5 C/O & RR DLSS 2014 FORD F150 4WD
• Performance Lift System w/Shocks

Features and Benefits

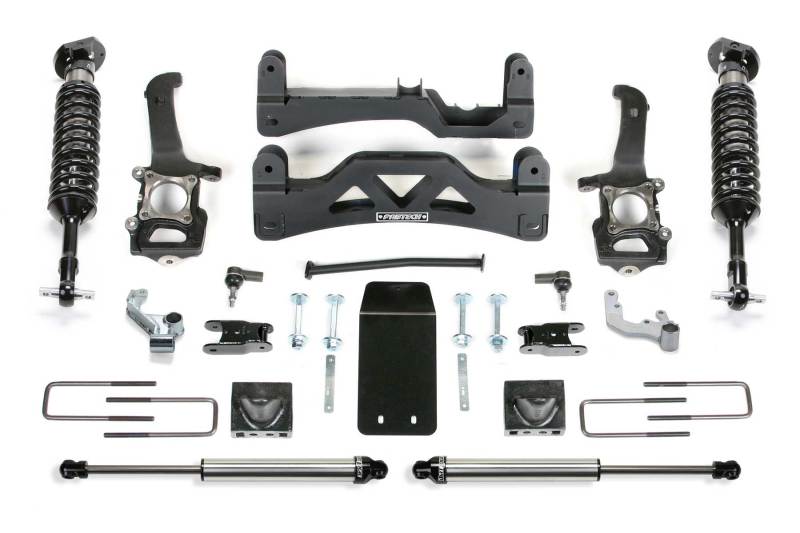

• Everything You Will Need To Lift Your Vehicle
• No Driveshaft Change Required For Auto Trac
• Allows Use Of Stock Tires And Wheels
• Retains Factory Steering Centerlink
• Retains Factory Upper Control Arms
• Increased Caster For More Control
• Quick No Weld Installation

Product Description - Invoice

Fabtech-6" PERF SYS W/DLSS 2

AAIA Part Type Description

Suspension Lift Kit
