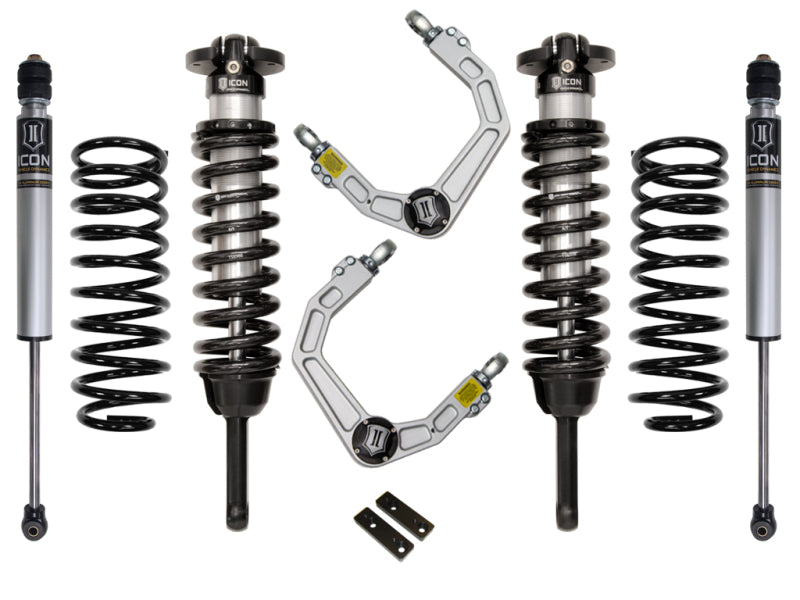

ICON 03-09 Toyota 4Runner/FJ 0-3.5in Stage 2 Suspension System w/Billet Uca

Manufacturer Part # : K53052

Market Description

• This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
• This ICON Stage 2 suspension system for the 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser uses the same components as the Stage 1 system with a few simple changes and additions. The 2.5 Series coilover shocks used in this system are the Extended Travel version, offering increased wheel travel that will enhance your on and off-road performance even more so than the standard travel units. Since these shocks do provide more suspension travel, they require the use of an ICON upper control arm.

Associated Comments

• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
• APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
• OEM Wheels & Tires Fitment: Yes
• Ships in multiple boxes

Product Description - Extended

2003-2009 4RUNNER/2007-2009 FJ CRUISER 0-3.5" LIFT STAGE 2 SUSPENSION SYSTEM WITH BILLET UCA

Features and Benefits

• Extended Travel coilovers matched with ICON UCA provides increased front droop travel
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Adjustable coilovers provide 0-3.5" of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

Product Description - Short

• ICON 03-09 Toyota 4Runner/FJ 0-3.5in Stage 2 Suspension System w/Billet Uca
• SUSPENSION SYSTEM

Product Description - Long

03-09 4RUNNER/FJ 0-3.5" STAGE 2 SUSPENSION SYSTEM W BILLET UCA

Product Description - Invoice

4RUNNER/FJ STAGE 2 SUSP SYS W BILLET UCA

AAIA Part Type Description

Suspension Lift Kit
