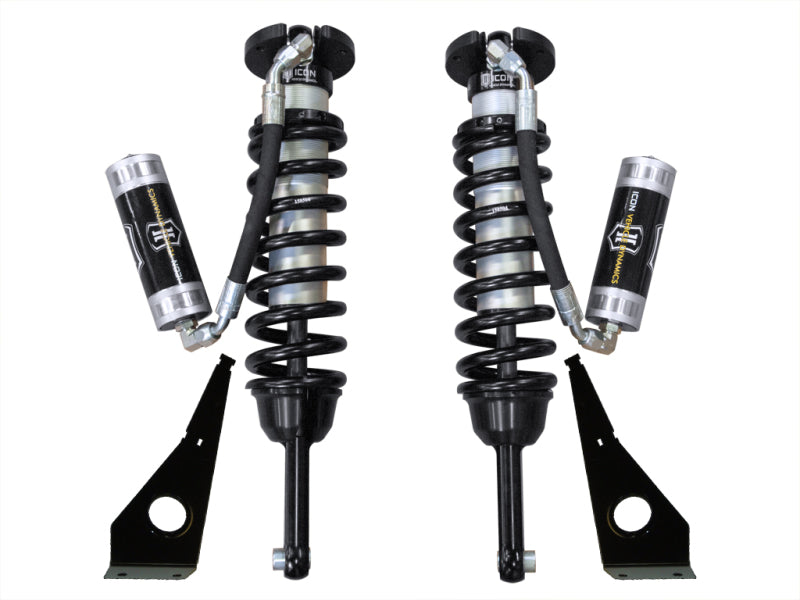

ICON 07-09 Toyota FJ / 03-09 Toyota 4Runner 2.5 Series Shocks VS RR Coilover Kit

Manufacturer Part # : 58740

Market Description

ICON Vehicle Dynamics has taken their already perfect performing coilover shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your FJ Cruiser or 4Runner's front suspension. These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock.

Associated Comments

• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: 8.5" wide wheel with 4.75" backspace
• Factory Wheels & Tires Fitment: Yes

Product Description - Short

• ICON 07-09 Toyota FJ / 03-09 Toyota 4Runner 2.5 Series Shocks VS RR Coilover Kit
• FJ/T4R COILOVER KIT

Product Description - Extended

2007-2009 FJ CRUISER/2003-2009 4RUNNER 2.5 VS REMOTE RESERVOIR COILOVER KIT

Features and Benefits

• Cad-plated threaded body / Extreme Weather Plating Option Available
• Mounting Bracket Orients Reservoir for Optimum Tire Clearance
• Race shock piston with flutter stack compression valving
• Hose Length Optimized for Increased Fluid Transfer
• Kit also Includes Reservoir Mounting Brackets
• 250 PSI nitrogen-charged internal reservoir
• External Reservoir Ensures Maximum Cooling
• Kit Includes Sway bar relocation brackets
• Adjustable ride height from 0" - 3"
• 5/8" PTFE-lined spherical bearing
• Billet aluminum upper mount
• Completely re-buildable
• Chrome-silicon spring

Product Description - Long

07-09 FJ/03-09 4RUNNER 2.5 VS RR COILOVER KIT

Product Description - Invoice

FJ/4RUNNER 2.5 VS RR COILOVER KIT

AAIA Part Type Description

Coilover Set
