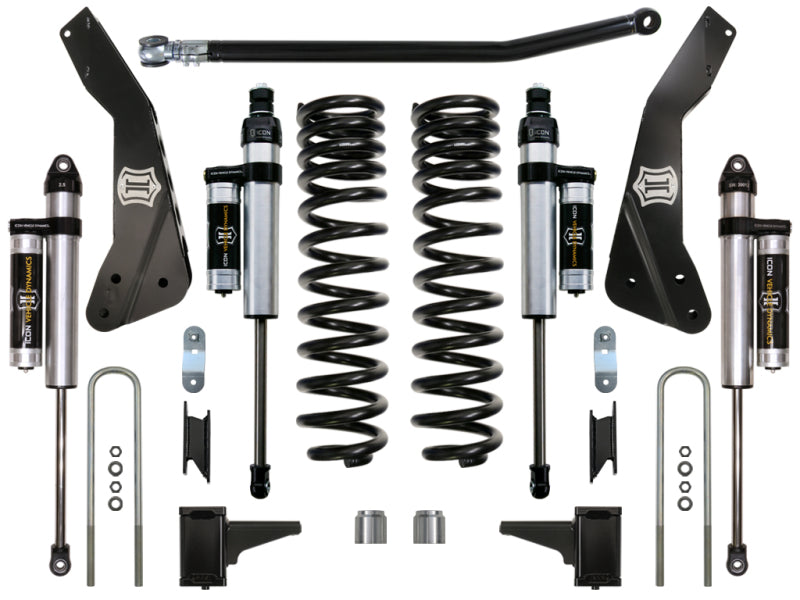

ICON 11-16 Ford F-250/F-350 4.5in Stage 3 Suspension System

Manufacturer Part # : K64562

Market Description

This 4.5" System for the 2011-2016 Super Duty is one of the best riding suspension systems ICON has ever developed. This system has been engineered using the highest quality materials and components. The dual rate front coil springs combined with our ICON 2.5 Aluminum Series shocks give these trucks the performance they so desperately need. This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks, U-bolts, and our patented adjustable track bar with upgraded bearing giving the front end of these trucks perfect track alignment. The Stage 3 system also upgrades the front and rear shocks to our 2.5" Aluminum Series piggyback reservoir shocks for even better ride quality and performance.

Associated Comments

• APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #40: RADIUS ARM / 4-LINK FRAME BRACKETS WILL REQUIRE MINOR DRILLING INTO FRAME TO COMPLETE INSTALL
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• OEM Wheels & Tires Fitment: Yes
• Ships in multiple boxes

Features and Benefits

• Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
• 100% bolt-on system - no cutting or welding necessary for install
• Clears 35" tall tires & 37" tall tires w/ minor trimming
• 4.5" more travel from ride height to front bump stops
• Lifetime guarantee that coil springs won’t sag
• No drive shaft modifications needed
• Less body-roll than stock truck
• 50% increase in wheel travel
• No change in towing capacity
• Dual rate coil spring

Product Description - Extended

2011-2016 FORD F250/F350 4.5" LIFT STAGE 3 SUSPENSION SYSTEM

Product Description - Short

• ICON 11-16 Ford F-250/F-350 4.5in Stage 3 Suspension System
• SUSPENSION SYSTEM

Product Description - Long

11-16 FORD F250/F350 4.5" STAGE 3 SUSPENSION SYSTEM

Product Description - Invoice

11-16 F250/F350 4.5" STAGE 3 SUSP SYSTEM

AAIA Part Type Description

Suspension Lift Kit
