Name: ICON 2001+ GM HD / 2015+ Chevrolet Colorado / 14-18 GM 1500 (Large Taper) Delta Joint Kit
Brand: ICON
SKU: T14.355597
Price: 292.07 USD
Availability: OutOfStock

ICON 2001+ GM HD / 2015+ Chevrolet Colorado / 14-18 GM 1500 (Large Taper) Delta Joint Kit

$292.07 USD

Manufacturer Part # : 614555

Product Description - Extended

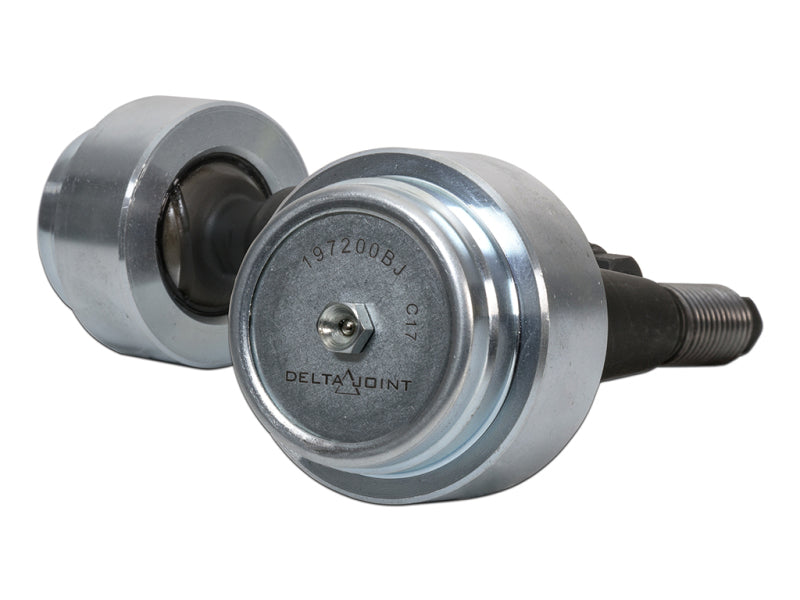

ICON’s Delta Joint is more robust than a uniball and capable of greater angularity than a typical ball joint. Its metal-on-metal construction and a greaseable design increases longevity while also allowing for noise-free operation.
2001-UP GM HD/2015-UP COLORADO/2014-2018 GM1500(LARGE TAPER) DELTA JOINT KIT

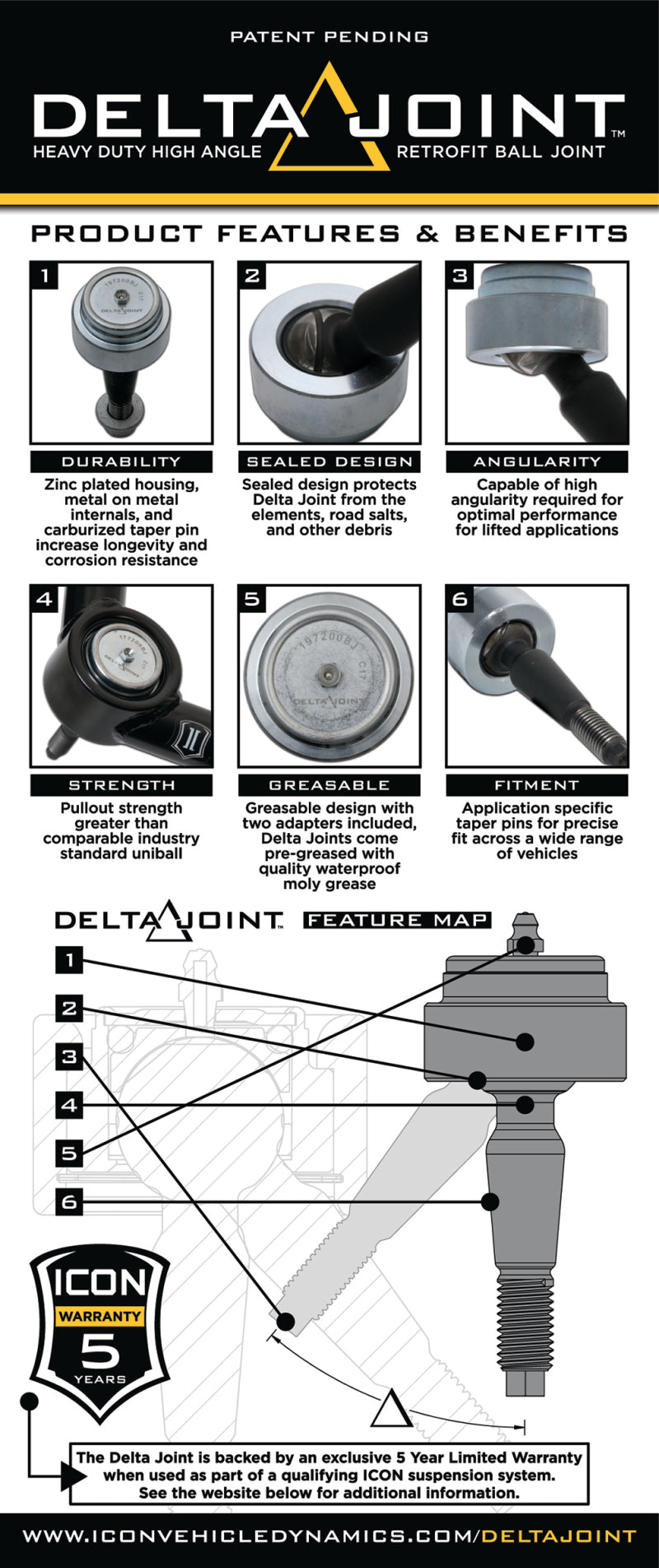

Features and Benefits

5 Year ICON Limited Warranty (When used with ICON Vehicle Dynamics suspension components, visit www.iconvehicledynamics.com/deltajoint for more info)
Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability of a ball joint with the performance characteristics of a traditional uniball
Carburized taper pin provides increased corrosion resistance, decreased internal friction, and less chance of thread galling on assembly
Sealed design and zinc plated housing protects Delta Joint from the elements, road salts, and other debris
Metal on metal internals and a greasable design for maximum longevity and noise-free operation

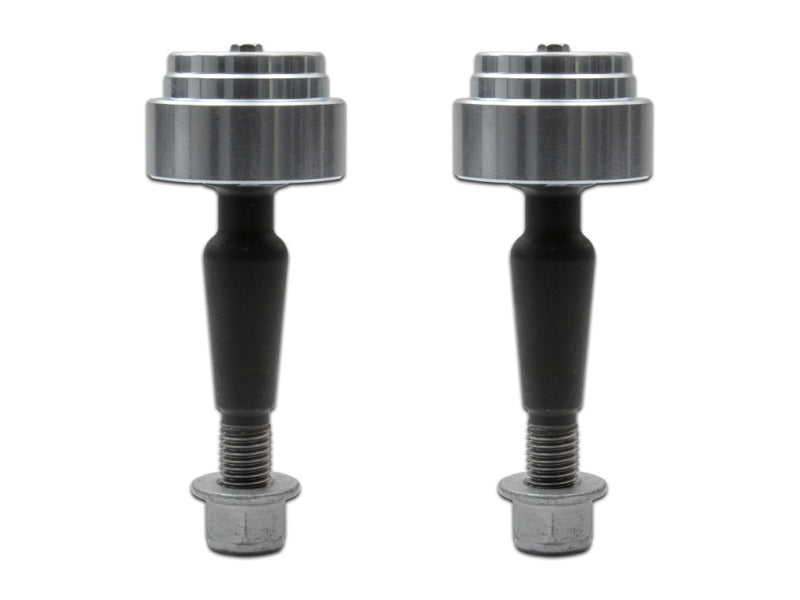

Application specific taper pins for precise fit across a wide range of vehicles
Pullout strength greater than comparable industry standard uniball
Capable of high angularity required for lifted applications

Associated Comments

TECH NOTE: Also compatible with 2019 Chevrolet Silverado 1500 LD and 2019 GMC Sierra 1500 Limited equipped with ICON UCA kit part # 78600 or 78600DJ
APPLICATION NOTE #234: Will not fit F-150 Tremor or F-150 Raptor
TECH NOTE: Not compatible with Colorado ZR2
