ICON 2020+ Jeep Gladiator 2.5in Stage 5 Suspension System (BILLET)

Manufacturer Part # : K22105

Market Description

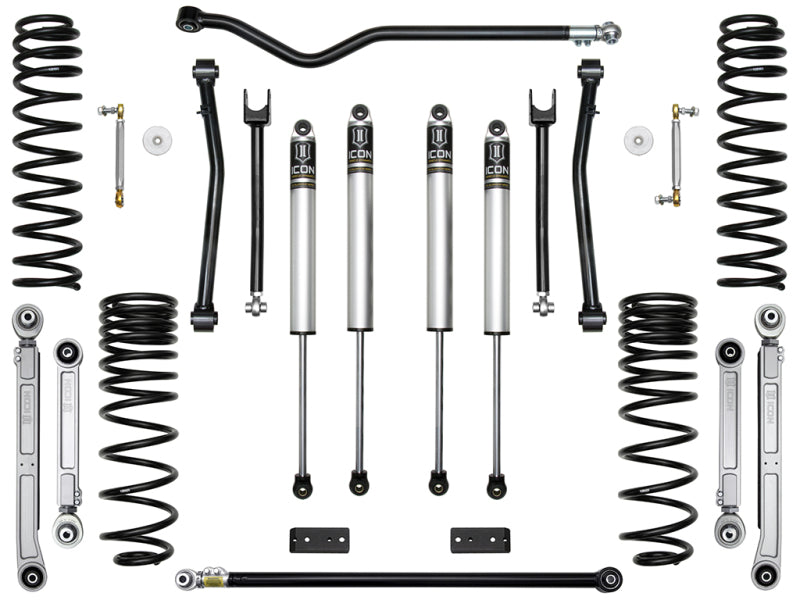

The Stage 5 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for significantly improving off-road performance and overall ride quality for the application that will see frequent moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, billet aluminum adjustable upper and lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

Associated Comments

• TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
• TECH NOTE: Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight.
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
• APPLICATION NOTE #127: WILL NOT FIT GLADIATOR MOJAVE TRIM
• APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
• OEM Wheels & Tires Fitment: Yes
• Ships In Multiple Boxes

Features and Benefits

• Rear billet upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Front upper and lower links included for caster angle correction and improved front end articulation
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• Dual rate front coil springs with lifetime guarantee against sagging/breakage
• Front and rear track bars ensure proper alignment and improved articulation
• 2.0 Aluminum Series shocks with vehicle specific valving
• Fits 35" tires (37" with extended bump stop spacer kit)
• Adjustable, billet aluminum front sway bar links
• Improves on and off-road ride quality over stock
• 100% bolt-on system makes for an easy install
• 33% front, 23% rear increase in wheel travel
• 2.5" lift height

Product Description - Extended

2020-UP JEEP GLADIATOR JT 2.5" STAGE 5 SUSPENSION SYSTEM WITH BILLET LINKS

Product Description - Short

• ICON 2020+ Jeep Gladiator 2.5in Stage 5 Suspension System (BILLET)
• SUSPENSION SYSTEM

Product Description - Long

20-UP JEEP GLADIATOR 2.5" STAGE 5 SUSPENSION SYSTEM (BILLET)

Product Description - Invoice

20-UP JT 2.5" STAGE 5 SUSP SYS BILLET

AAIA Part Type Description

Suspension Lift Kit
