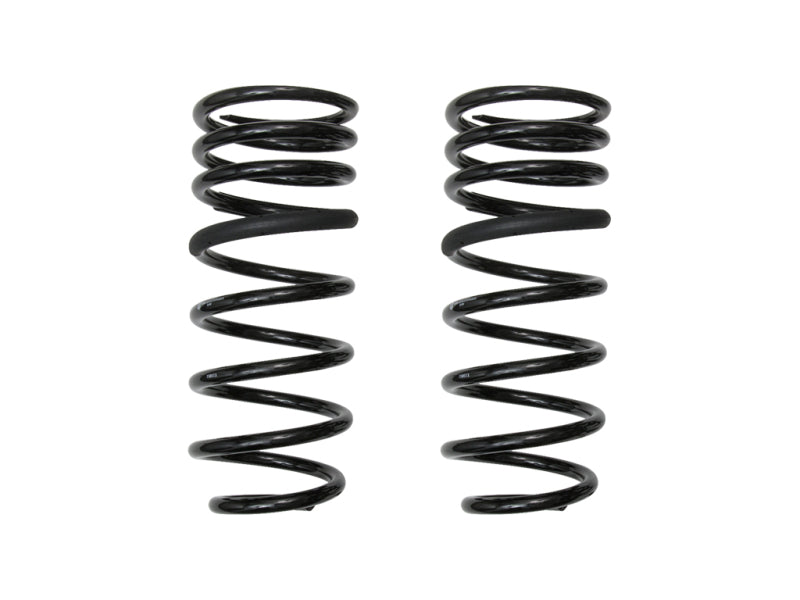

ICON 2024+ Tacoma .5in Lift Overland Rear Coil Spring Kit

Manufacturer Part # : 51215

Market Description

ICON Dual Rate Overland rear coil springs for 2024-2025 Toyota Tacoma provide a modest increase in ground clearance on heavier Tacoma builds while also greatly enhancing on- and off-road performance, especially when used with ICON shocks and suspension components. Their dual rate coil design provides a softer ride rate with a firmer overload rate that combine to deliver on-road comfort with excellent load support, bottoming resistance, and superior off-road performance. These springs are designed to net .5" of rear lift over stock with approximately 600lbs of additional weight added to the rear, for a more aggressive stance and increased fender clearance for larger wheels and tires on more outfitted vehicles. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage allow you to drive with confidence in knowing that you have the best suspension products available for the 2024-2025 Toyota Tacoma.

Product Description - Extended

The ICON triple-rate coil springs provide a softer ride and droop rates with firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance.

Associated Comments

• APPLICATION NOTE #191: Advertised lift height ranges are for a vehicle with approx 600lbs of additional weight in rear. Increasing or decreasing weight of vehicle due to accessories will alter lift range.
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required.
• Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.5" with 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18" x 9" with 6" Backspace / 25mm Offset
• APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
• Factory Wheels & Tires Fitment: Yes

Features and Benefits

• Significantly improves on- and off-road ride quality and performance over stock
• .5" rear lift height over stock with 600lbs of additional weight in the rear
• Dual rate rear coil springs with ICON-engineered ride and overload rates
• Dual stage powder coating for corrosion resistance
• Lifetime guarantee against sagging/breakage

Product Description - Short

• ICON 2024+ Tacoma .5in Lift Overland Rear Coil Spring Kit
• COIL SPRING KIT

Product Description - Long

24-25 TACOMA .5" LIFT OVERLAND REAR COIL SPRING KIT

AAIA Part Type Description

Coil Spring Set

Product Description - Invoice

51215
