ICON 2024+ Toyota Tacoma Diff Drop Kit

Manufacturer Part # : 55160

Market Description

The ICON Vehicle Dynamics Front Differential Drop Kit for the 2024-2025 Toyota Tacoma 4WD, 2025 Toyota 4Runner 4WD, and 2024-2025 Toyota Land Cruiser 250 Series lowers the front differential in order to improve CV angles at full suspension droop and maximize the available front suspension travel and prevent CV bind when paired with ICON coilovers. Polyurethane mounting bushings replace the soft OE bushings to help limit differential movement under load. These brackets will endure the elements with their CNC laser cut steel construction with a semi-gloss black powder coat finish for corrosion resistance.

Associated Comments

TECH NOTE: Compatible with all 2024-2025 Toyota Tacoma 4WD, all 2024-2025 Land Cruiser 250 Series, and all 2025 4Runner 4WD submodels. Required for installation of ICON coilover kits on 2024-2025 Toyota Tacoma 4WD, 2024-2025 Land Cruiser 250 Series, and 2025 4Runner 4WD models.

Product Description - Extended

The ICON Vehicle Dynamics Front Differential Drop Kit for the Toyota Tacoma, Land Cruiser 250, and 4Runner lowers the front differential in order to improve CV angles at full suspension droop and increase available suspension travel range.

Features and Benefits

• Vehicle specific design for 2024-2025 Toyota Tacoma, 2025 Toyota 4Runner, and 2024-2025 Toyota Land Cruiser 250 Series

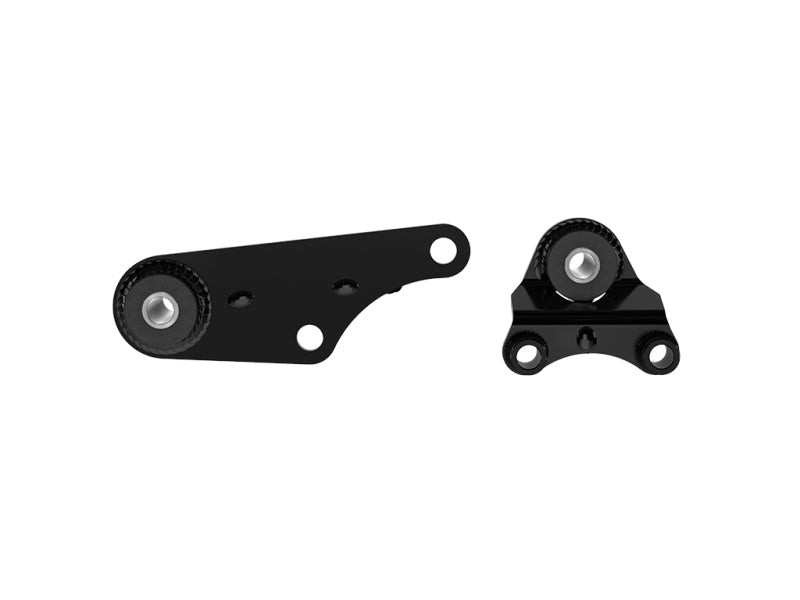

• CNC laser cut, precision brake-formed steel bracketry with durable black powder coat finish
• Polyurethane bushings limit deflection and prevent differential movement under load
• Drops front differential to provide better maximum operating angle for CV joints

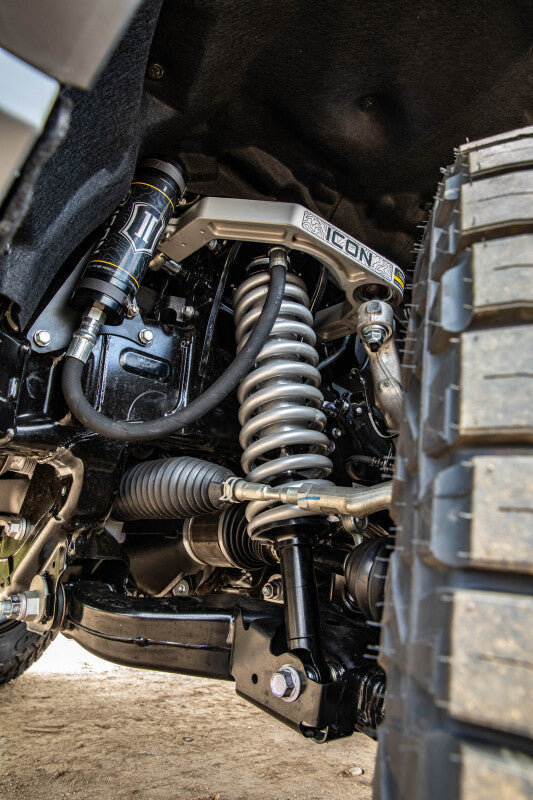

• Maximizes available suspension travel when paired with ICON coilovers
• 100% Bolt-on with no cutting or welding necessary for installation

Product Description - Long

24-25 TACOMA 4WD/24-25 LC250/25 T4R 4WD FRONT DIFF DROP KIT

Product Description - Short

• ICON 2024+ Toyota Tacoma Diff Drop Kit
• DIFFERENTIAL DROP

AAIA Part Type Description

Differential Drop Spacer Kit

Product Description - Invoice

55160
