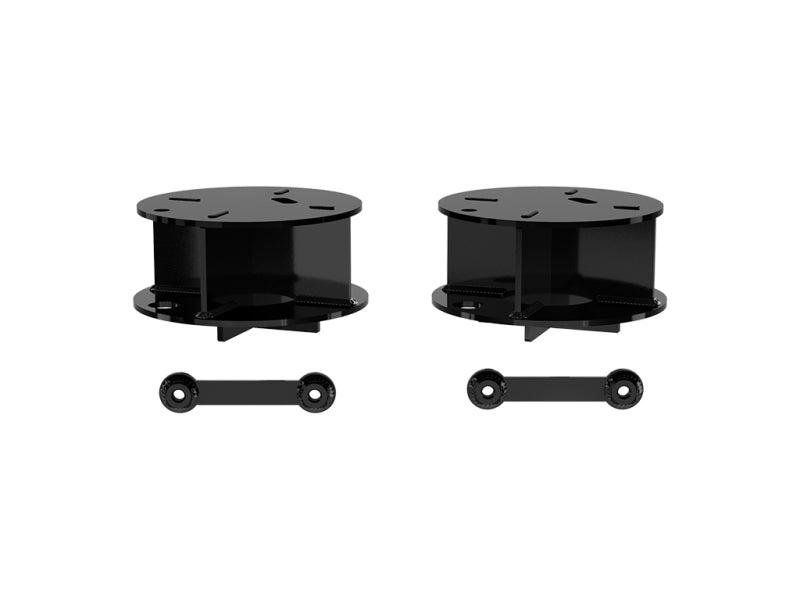

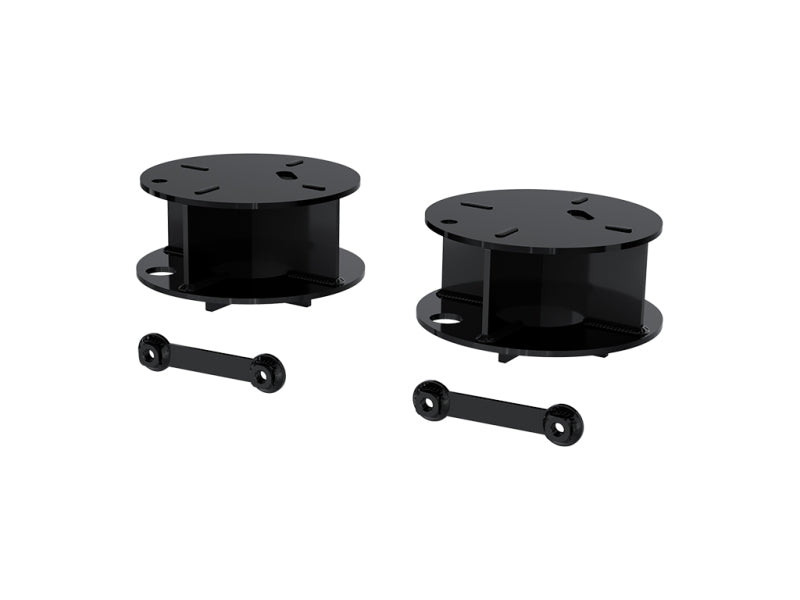

ICON 22 Toyota Tundra Rear Coil Spacer Kit

Manufacturer Part # : 51016

Market Description

The ICON 3” Lift Rear Coil Spacer Kit is used as part of the ICON 6” Lift Performance Suspension System for the 2022-2024 Toyota Tundra and allows the OE rear coil springs to be reused to obtain the required rear lift at a lower cost while still allowing the option to upgrade to ICON Triple Rate Rear Coil Springs in the future. These high-quality spacers are fabricated from CNC laser cut steel and powder coated with a semi-gloss black finish.

Product Description - Extended

The ICON 3” Coil Spring Spacer Kit is used as part of the 6” Lift Suspension System for the 22-24 Tundra. Allows the OE rear coils to be reused to obtain lift while still allowing the option to upgrade to ICON rear coils in the future.

Associated Comments

• APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
• TECH NOTE: Requires additional components to complete system. DO NOT attempt install without part numbers 51010, 51011, 51012, 51014, and 51017.
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
• APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
• OEM Wheels & Tires Fitment: No

Features and Benefits

• Allows use of OE rear coil springs with ICON 6” Lift Performance Suspension System
• Lower cost option compared to ICON Triple Rate Rear Coils
• Durable semi-gloss black powder coat finish
• Compatible with 2WD and 4WD models
• ICON Limited Lifetime Warranty
• Fabricated steel construction

Product Description - Short

• ICON 22 Toyota Tundra Rear Coil Spacer Kit
• COIL SPACER KIT

Product Description - Long

22-24 TUNDRA REAR COIL SPACER KIT

AAIA Part Type Description

Suspension Coil Spring Seat

Product Description - Invoice

51016
