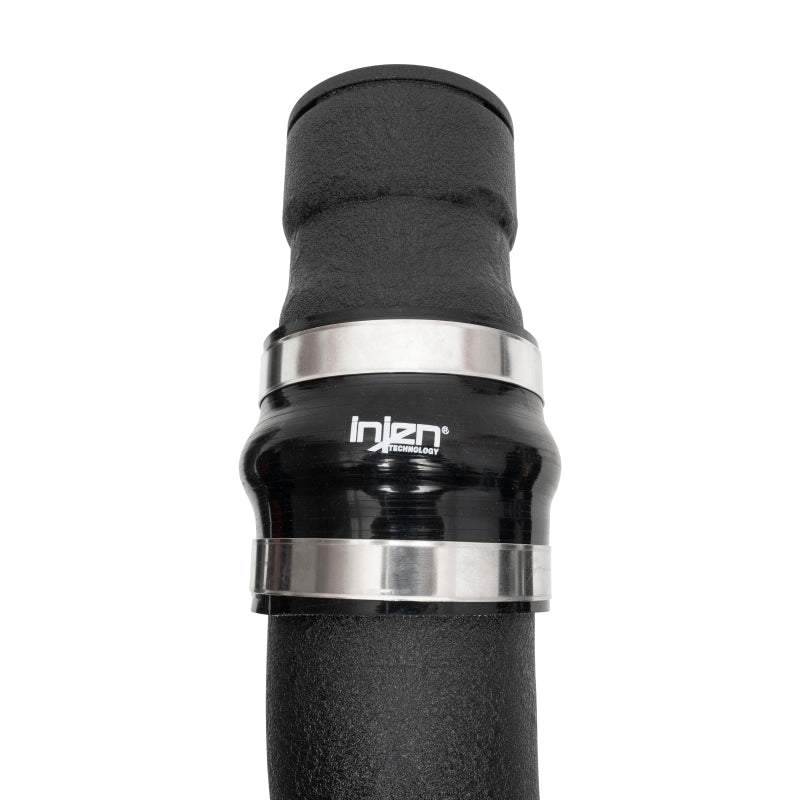

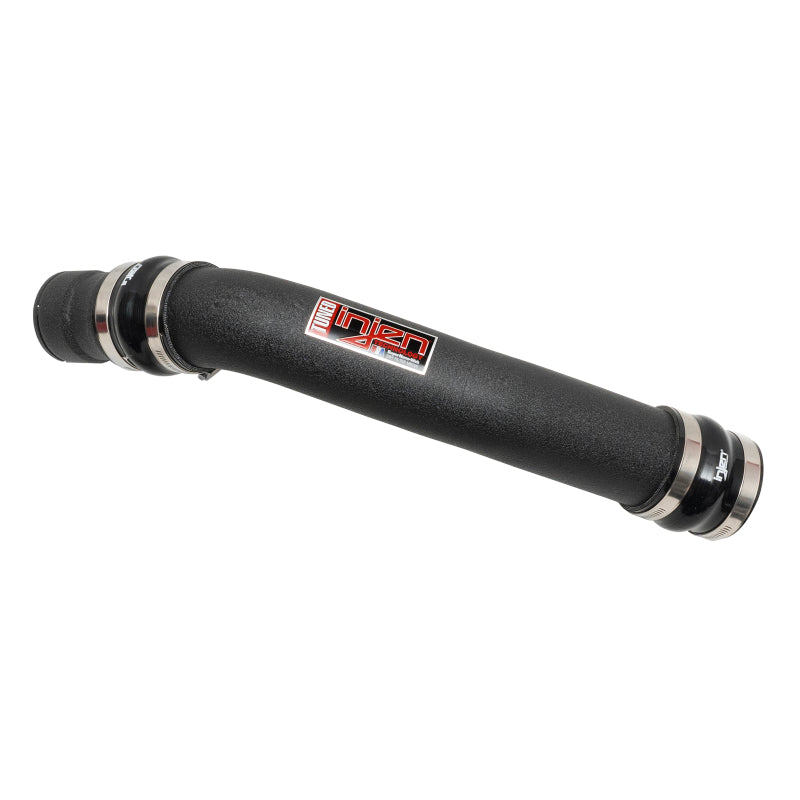

Injen 17-22 Ford F250/F/350/F-450/F-550 V8-6.7L Turbo Diesel Wrnkl Blk Intercooler Hot Side Piping

Manufacturer Part # : SES9004ICPHWB

Market Description

• This hot side charge pipe is an upgrade over the factory unit and is manufactured from oversized mandrel-bent 6061 aluminum and every bend and TIG weld is completed by hand at the Injen Technology headquarters in Pomona, California. Having an internal diameter of 3.00in, this hot side charge pipe is able to reduce restriction and quickly transfer hot air smoothly to the intercooler. It also aides in balancing airflow into the intercooler to improve performance and also helps lower engine damaging exhaust gas temperatures (EGTs).
• The team at Injen Technology are masters at understanding airflow and efficiency. They've taken this expertise and applied to their charge pipes designs for the 2017-2022 Ford Super Duty Trucks equipped with the 6.7L Power Stroke Diesel. This particular unit is the Hot Side charge pipe and designed to reduce restriction and can be used alone or it pairs perfectly with the Injen Cold Side Charge pipe, P/N SES9004ICPC.
• For optimum performance, pair this charge pipe with the Injen SES9004ICPC cold side pipe or purchase them as a complete unit under one part number ? SES9004ICP. As always, these charge pipes are available with three different finishes; Polished, Wrinkle Black, and finally Wrinkle Red.

Features and Benefits

• Note: This product is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
• Precision CNC machined factory-style quick connections utilizing the OE spring clip
• for Optimum performance, use with Injen's EVO9004 cold air intake
• Hot Side Piping Only - Complete system is available - SES9004ICP
• Pairs perfectly with Injen's SES9004ICPC Cold Side Charge Pipe

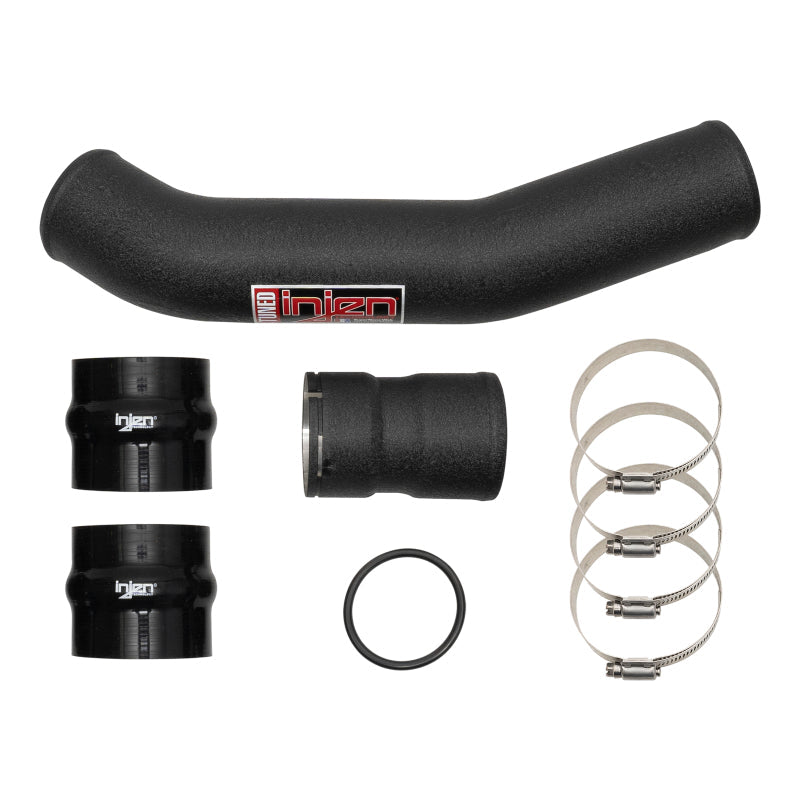

• Includes all necessary hardware for a hassle-free installation
• Beaded Tube Ends to Help Prevent Couplers from Coming Off
• Stainless Steel Band Clamps with Inner Protective Liner
• Increase Throttle Response and Decreases Turbo Lag
• Automotive Grade Reinforced Silicone Couplers
• Manufactured from Mandrel-Bent 6061 Aluminum
• Unique Injen Logo Plate for a Refined Style
• Injen Technology Limited Lifetime Warranty
• Works seamlessly with the OE intercooler
• Hot Side Pipe Inside Diameter - 3.00in
• Uses all factory mounting locations
• Made in Pomona California, USA
• Wrinkle Black ? SES9004ICPHWB
• Available in three finishes
• Wrinkle Red ? SES9004ICPHWR
• Polished - SES9004ICPH

Product Description - Extended

SES Intercooler Pipe - Hot Side Only, Part No. SES9004ICPHWB, 2017-2022 Ford Super Duty Truck V8-6.7L Turbo Diesel

Product Description - Short

Injen 17-22 Ford F250/F/350/F-450/F-550 V8-6.7L Turbo Diesel Wrnkl Blk Intercooler Hot Side Piping

Product Description - Long

Injen SES Wrinkle Black Intercooler Pipes

Associated Comments

Intercooler not included

Product Description - Invoice

Injen Intercooler Pipe

AAIA Part Type Description

Intercooler Pipe
