BD Diesel Super B Single Turbo Kit - 1994-2002 Dodge 5.9L

Manufacturer Part # : 1045220

Market Description

• BD Diesel Performance is unique among its peers in that it designs, manufactures and distributes a wide range of products specifically engineered for performance diesel applications. Located in Abbotsford, British Columbia, Canada, BD's state-of-the-art facility covers 65,000 square feet, and employs 60 plus highly-trained individuals. The BD name became recognized in 1989, when the company introduced the first exhaust brake for the burgeoning diesel pick-up truck market. BD's roots, however, actually date back to 1972, when Valley Fuel Injection, Ltd. first opened its doors. Today, Valley Fuel Injection and BD Diesel Performance are one, with eight specialty divisions that focus on diesel power train components: Fuel Injection Calibration Department, Exhaust Brake Manufacturing, Electronic Circuit Design and Assembly, Transmission and Torque Converter Design and Remanufacturing, Turbocharger Design, Installation and Research and Development. BD's comprehensive approach to the diesel performance aftermarket ensures not only quality products, but educated dealers and satisfied customers. Thank you for your interest in BD Diesel Performance!
• Designed for 1994-2007 5.9L Dodge trucks, the Super B Single supports modified applications making 250-425 rwhp. Featuring Borg Warner's unique Extended Tip compressor wheel technology and low inertia, full-floating journal bearings, these turbos utilize BD's unique dual-volute turbine housing. This proven design utilizes low rpm exhaust pulses for improved turbine response, while the dual-action waste gate bleeds off turbine drive pressure from both volutes. BD's turbo systems also feature a heavy-duty waste gate actuator that prevents premature opening caused by high exhaust pressure. You can even fine-tune for ambient temperature and barometric pressure changes using BD's adjustable waste gate control. The Super B single offers quick spool-up, cooler EGT's and no compressor surge. All kits come with everything you need to allow for an easy install.

Product Description - Extended

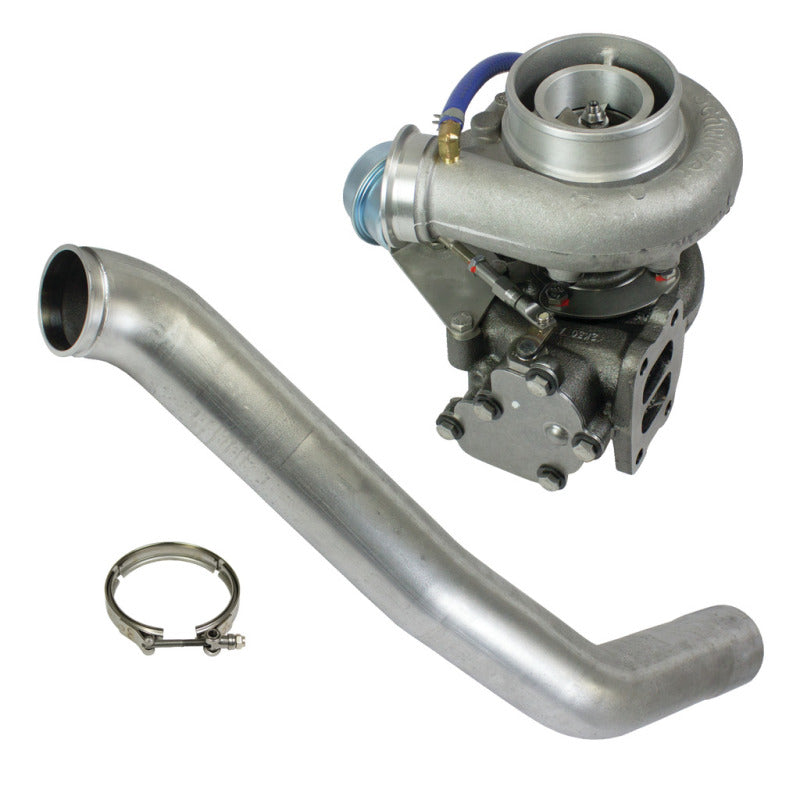

Super B Single Turbo Kit; SX S358; w/FMW Billet Wheel; Adjustable Wastegate; 870 CF / 450 HP; A/R Ration 0.80; Comp Wheel 58mm-2.28in.; Incl. Turbo/4in. Downpipe/Clamps/Hardware;

Features and Benefits

• Most systems can be upgraded to a twin system for more power or even better towing performance
• Dual volute T3 turbine housing utilizes low rpm exhaust pulses for improved turbine response
• Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning
• Special low inertia, full-floating 6-pad thrust bearings, not 3 pad like box turbos
• Efficient positive boost-to-drive pressure ratio yields high power with low EGTs
• BD's HD Waste gate and bracket holds boost and prevents over speed damage
• Perfect fitment to the stock turbocharger inlet connection points
• Efficient Positive Boost-To-Drive Pressure Ratio Yields High Pwr
• HD Wastegate/Bracket Holds Boost And Prevents Over Speed Damage
• Dual Volute T3 Turbine Housing Utilizes Low RPM Exhaust Pulses
• Turnbuckle Boost Control For Ease Of Adjustment/Extreme Tuning
• Perfect Fitment To Stock Turbocharger Inlet Connection Points
• Most Systems Can Up Be Upgraded To Twin System For More Power
• Special Low Inertia Full Floating 6 Pad Thrust Bearings
• Custom built to BD specifications, not a box turbo
• Custom Built To BD Specifications Not A Box Turbo
• Downpipe, V-Band Clamp, Band Clamp
• 12 Month Or 12000 Mile Warranty
• Quick Spool-Up With No Surging
• Turbine Wheel: 74mm 2.91in
• Cooler EGTs And Less Smoke
• Forged Milled Billet Wheel
• Cooler EGTs & less smoke
• Comp Wheel: 58mm 2.28in
• 870 CFM / 450 HP
• A/R Ratio: 0.80

Product Description - Long

• Super B Single SX S358 Turbo Kit w/FMW Billet Wheel - Dodge 1994-2002 5.9L
• Super B Single Turbo Kit

Product Description - Short

• BD Diesel Super B Single Turbo Kit - 1994-2002 Dodge 5.9L
• Turbocharger Kit
• TURBO SUPER B

Product Description - Invoice

TURBO SUPER B DODGE 1994-2002 5.9L

AAIA Part Type Description

Turbocharger
