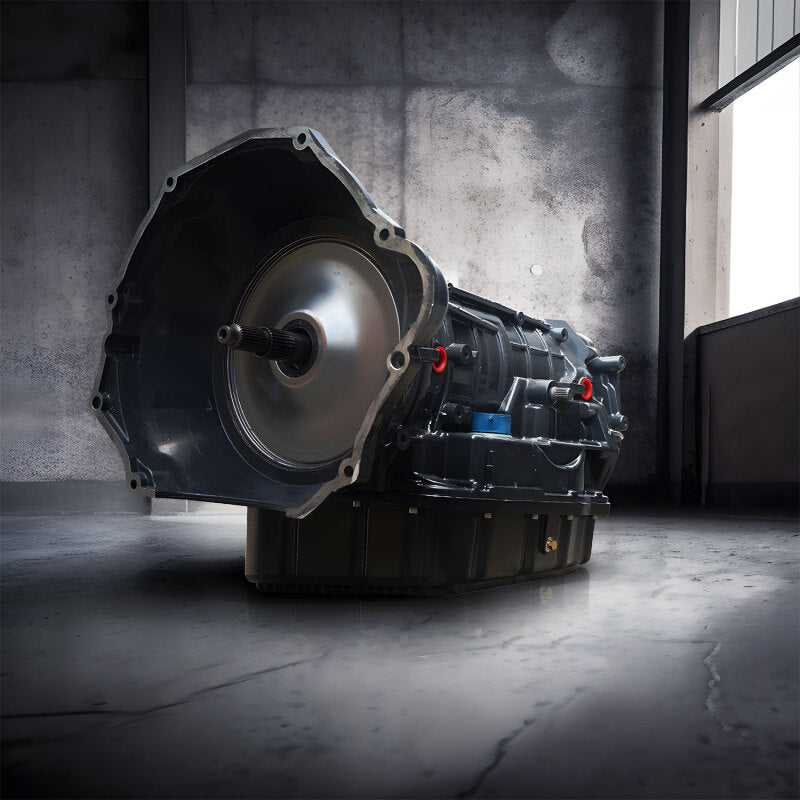

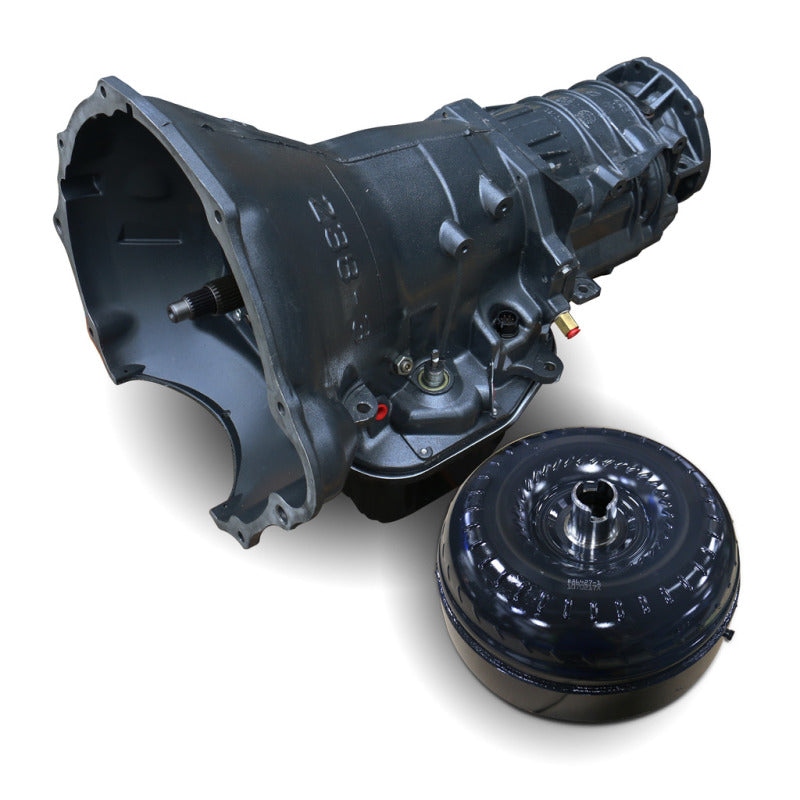

BD Diesel Transmission Kit - 2005-2007 Dodge 48RE 4WD w/ TVV Stepper Motor & c/w Auxiliary Filter

Out of stock
Regular price $5,394.95
Product INFO
  • Vendor BD Diesel
  • SKU T14.199997
  • Barcode 019025020740
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Transmission Kit; Complete Trans; Incl. Auxiliary Filter/2 QT Extra Capacity Pan; Incl. Complete Torque Converter; Enhanced Stall; Stage 4;

  • Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
  • Stock thrust bushings replaced with roller Torrington bearings
  • BD auxiliary full flow filter kit for extra protection
  • Drilled intermediate shaft for increased lubrication
  • Up to triple the amount of lock-up clutch material
  • Modified manual valve for lube in all positions
  • Pan heat-dissipating fins keep temperature down
  • BD rigid aluminum heavy duty transmission pan
  • Cooler line case saver in every transmission
  • Enhanced Stall - Street/Towing applications
  • Lower rpm response than the stock converter
  • Increase the durability of your drivetrain
  • Torque multiplying cast aluminum stators
  • Not warranted for Race or Sled Pull use
  • Every transmission is tested on a dyno
  • Upgraded Governor Pressure Transducer
  • Increased line pressure to 190-200psi
  • Less heat and better fuel economy
  • High temp/energy Raybestos band
  • Torque Convertor Enhanced Stall
  • Pan adds 2qt extra oil capacity
  • Stamp-forged steel front cover
  • No Shuttle Shifting Problems
  • Stamped Forged 1 Piece Cover
  • Upgraded Governor Solenoid
  • Clutch Count: OD DIRECT 10
  • More Efficient Operation
  • Clutch Count: FORWARD 5
  • Clutch Count: DIRECT 6
  • No Race Abuse Covered
  • Furnace-brazed fins
  • Magnetic drain plug
  • Furnace Brazed Fins
  • Upgraded Valve body
  • Clutch Count: OD 6
  • TORQUE CONVERTOR:
  • Billet band lever
  • Billet band strut
  • Aluminum HD Pan
  • TRANSMISSION:
