Fabtech 04-13 Nissan Titan 2/4WD 6in Basic Sys w/Stealth

Manufacturer Part # : K6000M

Market Description

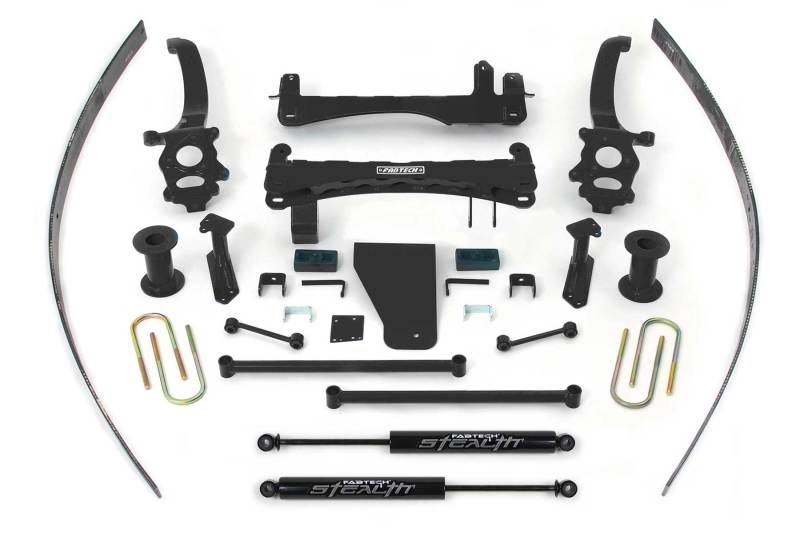

• The 6'' Basic system features our proven IFS technology with extended length steering knuckles that allow the factory upper control arms to be retained in the stock location while relocating the lower control arms. The lower arms are secured to the frame with our legendary arched crossmembers for superior ground clearance with solid 1/4'' thick plate construction for unsurpassed strength. Lift is accomplished via a steel coilover shock spacer system retaining the stock ride characteristics of the vehicle. The Rack and Pinion remains in the factory location decreasing installation time. Also included in this system is a 1/4'' thick differential skid plate and Impact struts. Rear lift is accomplished with a Block, Add-a-Leaf and U-bolt system.
• Fabtechs development capabilities are second to none with over 20 years of experience in aftermarket suspension design. State of the art software, fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market. Proper design in suspension development is key in providing a quality, trouble free product to the end consumer. Fabtech leads the industry with extensive research, design technology and rigorous testing that results in the highest performing, finest quality suspension system for the discerning offroad enthusiast.

Associated Comments

TIRE SIZE - 315/70R17 Wheel - 17X8 W/5" BS W/MINOR TRIMMING; 15. WILL EXPERIENCE SOME LOSS OF TURNING RADIUS.; 46. KIT WILL ONLY FIT MODELS W/ 11.25 IN. ROTOR

Product Description - Extended

• Basic Lift System w/Shocks; w/Stealth Monotube Shocks; 6 in. Lift;
• 6" BASIC SYS W/STEALTH 2004-13 NISSAN TITAN 2/4WD.

Product Description - Short

• Fabtech 04-13 Nissan Titan 2/4WD 6in Basic Sys w/Stealth
• 6" BASIC SYS W/STEAL
• LftKt-Suspw/Shock

Product Description - Long

• 6" BASIC SYS W/STEALTH 2004-13 NISSAN TITAN 2/4WD
• Basic Lift System w/Shocks

Features and Benefits

• Everything You Will Need To Lift Your Vehicle
• Designed For The Budget Minded Enthusiast
• Utilizes The Stock Radius Arm

Product Description - Invoice

Fabtech-6" BASIC SYS W/STEAL

AAIA Part Type Description

Suspension Lift Kit
