Fabtech 05-07 Ford F250 4WD w/Factory Overload 6in 4Link Sys w/Coils & Perf Shks

Manufacturer Part # : K20131

Market Description

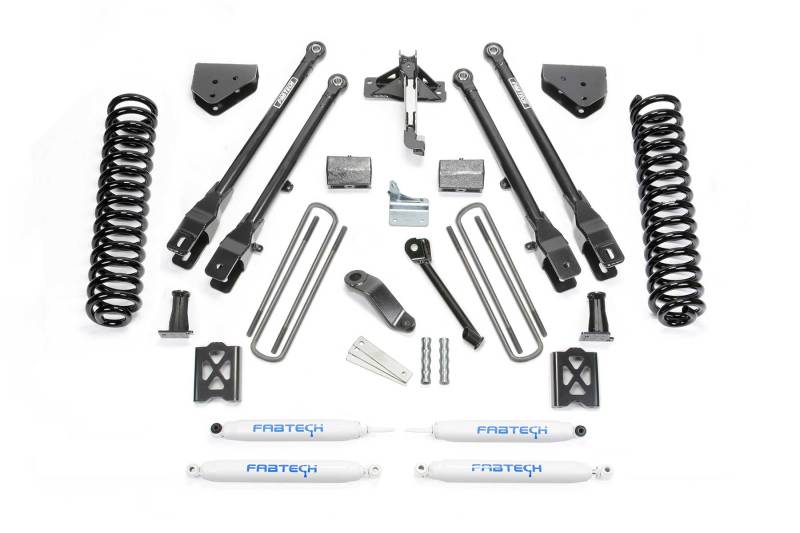

• At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and Wheel travel. Large 2'' OD heavy wall links feature race style 1'' Uniballs for superior strength. Thick 1/4'' steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our replacement Coil Springs. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift is a block & u-bolt kit.
• For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.

Associated Comments

TIRE SIZE - 315/70R17 Wheel - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 Wheel - 18X9.5 W/4 3/4" BS W/MINOR TRIMMING

Product Description - Short

• Fabtech 05-07 Ford F250 4WD w/Factory Overload 6in 4Link Sys w/Coils & Perf Shks
• 6" 4LINK SYS W/COILS
• LftKt-Suspw/Shock

Product Description - Extended

• 4 Link Lift System; w/Performance Shocks; 6 in. Lift; w/Factory Overload;
• 6" 4LINK SYS W/COILS & PERF SHKS 05-07 FORD F250 4WD W/FACTORY OVERLOAD.

Product Description - Long

• 6" 4LINK SYS W/COILS & PERF SHKS 05-07 FORD F250 4WD W/FACTORY OVERLOAD
• 4 Link Lift System

Features and Benefits

• Provides Unsurpassed Articulation And Wheel Travel
• Everything You Will Need To Lift Your Vehicle
• Race Style Uniball For Superior Strength
• Ultimate In Suspension Performance
• No Cutting Or Welding
• Heavy Wall Links

Product Description - Invoice

Fabtech-6" 4LINK SYS W/COILS

AAIA Part Type Description

Suspension Lift Kit
