Fabtech 05-07 Ford F350 4WD 6in Basic Sys w/Dlss Shks

Manufacturer Part # : K20102DL

Market Description

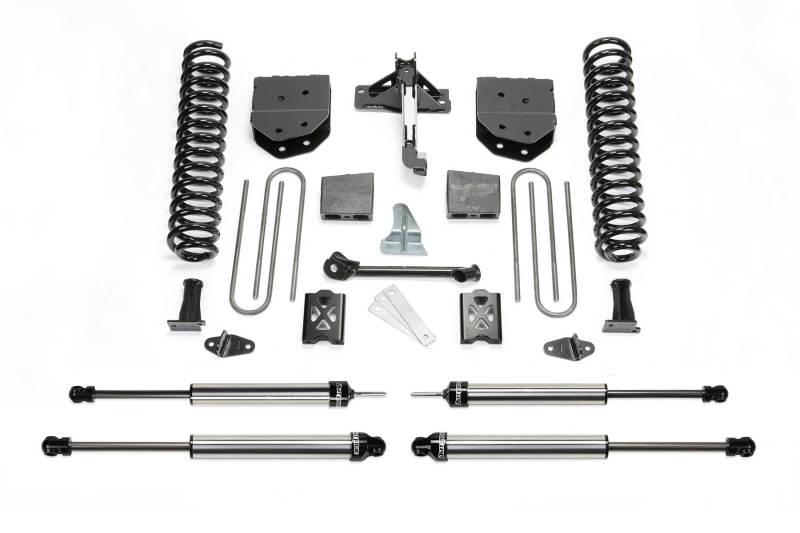

• This system provides 6'' of lift to clear 315/70R17 tires for the entry level enthusiast. The system utilizes the factory Radius Arms with new heavy duty frame brackets for the budget minded offroader. Lift height is accomplished with 6'' Performance Coil Springs in the front and a Block & U-bolt kit in the rear. System includes a Trac Bar relocation bracket, Pitman Arm and Sway Bar brackets. Includes front and rear 2.25 Dirt Logic Stainless Steel shocks.
• Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

Associated Comments

TIRE SIZE - 315/70R17 Wheel - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 Wheel - 18X9.5 W/4 3/4" BS W/MINOR TRIMMING; NON DUALLY MODELS ONLY.

Product Description - Extended

• Basic Lift System w/Shocks; w/DLSS Shocks; 6 in. Lift;
• 6" BASIC SYS W/DLSS SHKS 05-07 FORD F350 4WD.

Product Description - Short

• Fabtech 05-07 Ford F350 4WD 6in Basic Sys w/Dlss Shks
• 6" BASIC SYS W/DLSS
• LftKt-Suspw/Shock

Features and Benefits

• Everything You Will Need To Lift Your Vehicle
• Designed For The Budget Minded Enthusiast
• Utilizes The Stock Radius Arm

Product Description - Long

• 6" BASIC SYS W/DLSS SHKS 05-07 FORD F350 4WD
• Basic Lift System w/Shocks

Product Description - Invoice

Fabtech-6" BASIC SYS W/DLSS

AAIA Part Type Description

Suspension Lift Kit
