Manufacturer Part # : K1109DL
Market Description

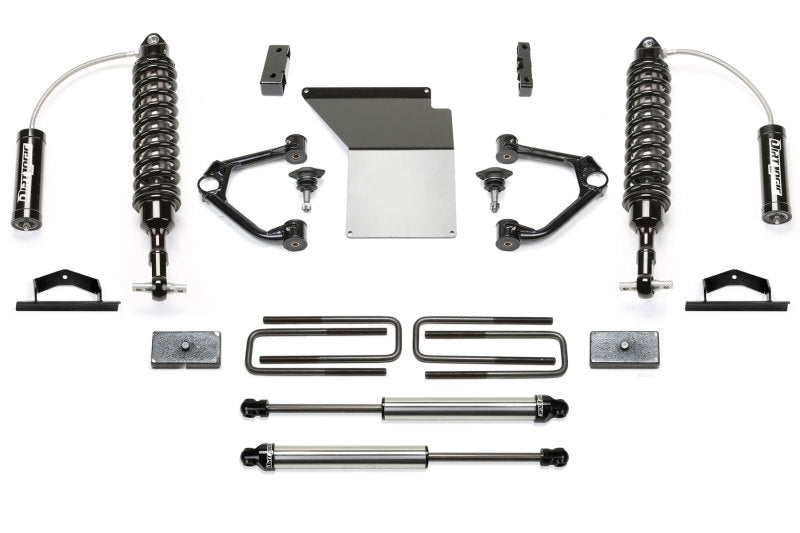

- This system offers a mild lift height with easy installation for clearance of 33'' tall tires on 2014-15 K1500's w/ factory Aluminum suspension. Lift is accomplished with Dirt Logic 2.5 Coilovers that provide superior damping for aggressive offroad use and a good highway ride. The stock upper control arms are replaced with thick wall DOM tubular arms that feature heavy duty extended range ball joints. These ball joints provide additional strength to the vehicles suspension compared to the factory. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4'' thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1 1/2'' rear lift block and u-bolts to help level the stance of the vehicles. Dirt Logic 2.25 rear shock absorbers replace the stock units for increased damping for both on and offroad use. - Value priced system with Fabtech quality - Increased ground clearance - Includes Dirt Logic 2.5 Coilovers for superior damping - Extended range upper ball joints provide a smooth quiet ride - Increased fender clearance compared to a Leveling Kit for 33'' tall tires - Suspension can be restored to stock -Easy installation. NOTE- Before ordering visually check your vehicle's factory suspension for aluminum or steel version. This system will only fit factory aluminum suspension vehicles.
- The 4 Budget System utilizes the factory front coil springs with a steel upper spacer providing 4 of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts.
Associated Comments
TIRE SIZE - 33/12.50R17 Wheel - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 275/65R18 Wheel - 18X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 295/55R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING
Product Description - Extended
- Budget Lift System; 4 in. Lift; w/Ball Joint Upper Control Arm; Front Dirt Logic SS 2.5 Coilover Resi; Rear Dirt Logic Shocks;
- 3" BUDGET SYS W/ DL 2.5 & 2. 14-18 GM C/K1500 P/U W/ OE ALM OR STMP STL UCA.
Product Description - Short
- Fabtech 14-18 GM K1500 w/OE Alum. UCA 4in Budget UCA System w/DL 2.5 Resi Coilovers & Rear DL Shocks
- 3" BUDGET SYS W/ DL
- Lift Kit-Suspension
Product Description - Long
- 3" BUDGET SYS W/ DL 2.5 & 2. 14-18 GM C/K1500 P/U W/ OE ALM OR STMP STL UCA
- Budget Lift System
Features and Benefits
- ESC And Traction Control Compliant
- Allows Clearance For 35 in. Tires
- No Welding Required
Product Description - Invoice
Fabtech-3" BUDGET SYS W/ DL
AAIA Part Type Description
Suspension Lift Kit
