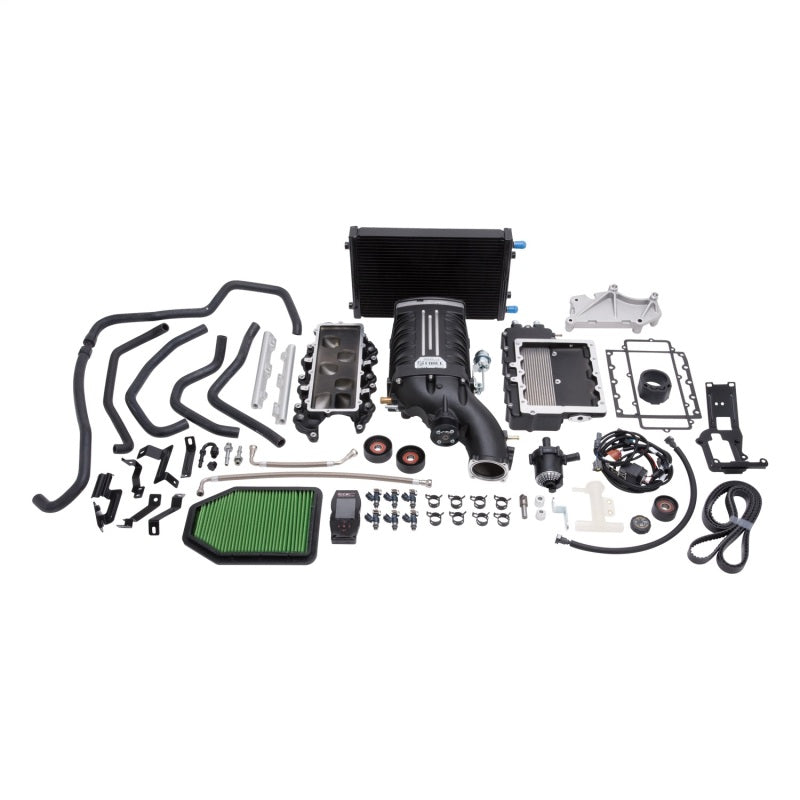

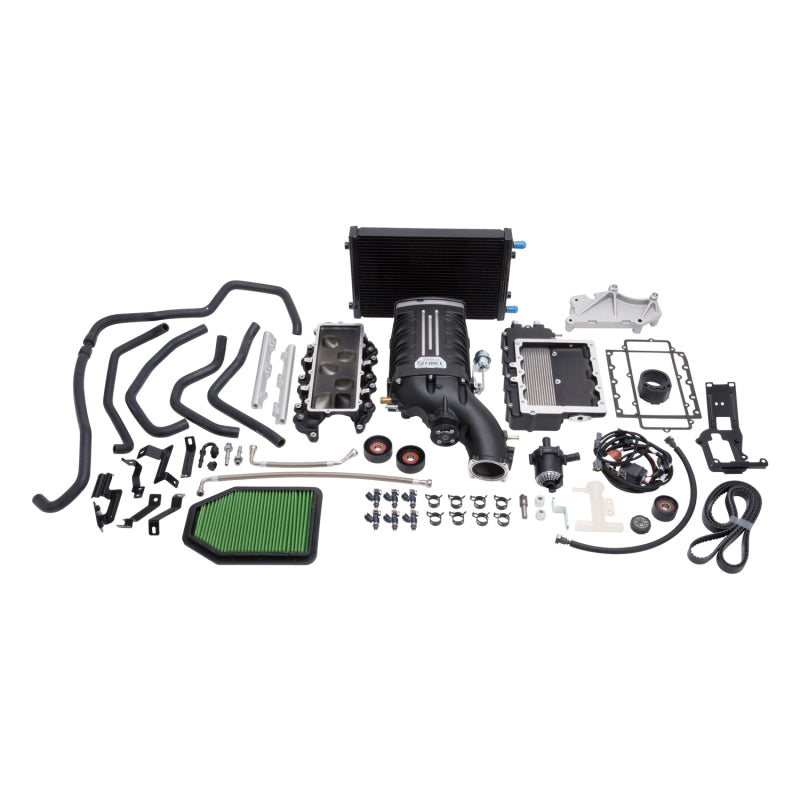

Edelbrock 15-18 Jeep Wrangler JK 3.6L Stage 1 E-Force Supercharger

Manufacturer Part # : 1528

Market Description

The Edelbrock Supercharger System #1528 for your 2015-18 Wrangler delivers 317 RWHP and 277 RWTQ for a manual and 303 RWHP and 262 RWTQ for an automatic. This Supercharger is exclusively for the Pentastar 3.6L V6 Engine featuring a unique design with minimal components make it possible to fit under the stock hood. The core of each system is the Eaton Gen VI 1320 TVS rotating assembly with a four-lobe design and 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path that for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. Part #1528 will require the ECM and TCM to be sent into Edelbrock for modification, no handheld programmer is included with these systems. This is an 8-10 day process/waiting period from the time they are received.

Product Description - Extended

• Edelbrock part #1528 Jeep Wrangler 3.6L V6 2015-18 Pentastar Supercharger, delivers 317 RWHP and 277 RWTQ for a MANUAL and 303 RWHP and 262 RWTQ for an auto.
• E-Force Supercharger for 2015-18 Jeep Wrangler 3.6L

Shipping Restrictions

{ eo : 1in.; eo_carb_number : D-215-118in.; eo_carb_link : https:/ww3.arb.ca.gov/msprog/aftermkt/devices/eo/d-215-118.pdf }

Key Search Words

Edelbrock; Jeep; Supercharger; Engine; 2015; 2016; 2017; 2018; Wrangler; Pentastar; 3.6L; Manual; 1528

Label Description

• Edelbrock Stage 1 Supercharger #1528 For 2015-18 Jeep Wrangler JK 3.6L W/ Tune
• Edelbrock Stage 1 Supercharger #1528 For 2015-18 Jeep Wrangler JK 3.6L W/Tune

Product Description - Short

• Edelbrock 15-18 Jeep Wrangler JK 3.6L Stage 1 E-Force Supercharger
• SUPERCHARGER

Product Description - Long

E-Force Stage-1 Street Systems Supercharger

Product Description - Invoice

Edelbrock Jeep Wrangler 3.6L V6 2015-18

Features and Benefits

Little To No Decrease In Fuel Economy

Application Summary

Jeep:Pentastar V6:220 (3.6L)

AAIA Part Type Description

Supercharger Kit

Product Description - Abbreviated

SuperchrgrKt
