Edelbrock Supercharger Stage 1 - Street Kit 2004-2008 Ford F-150 5 4L 3V w/ Tuner

Manufacturer Part # : 1581

Market Description

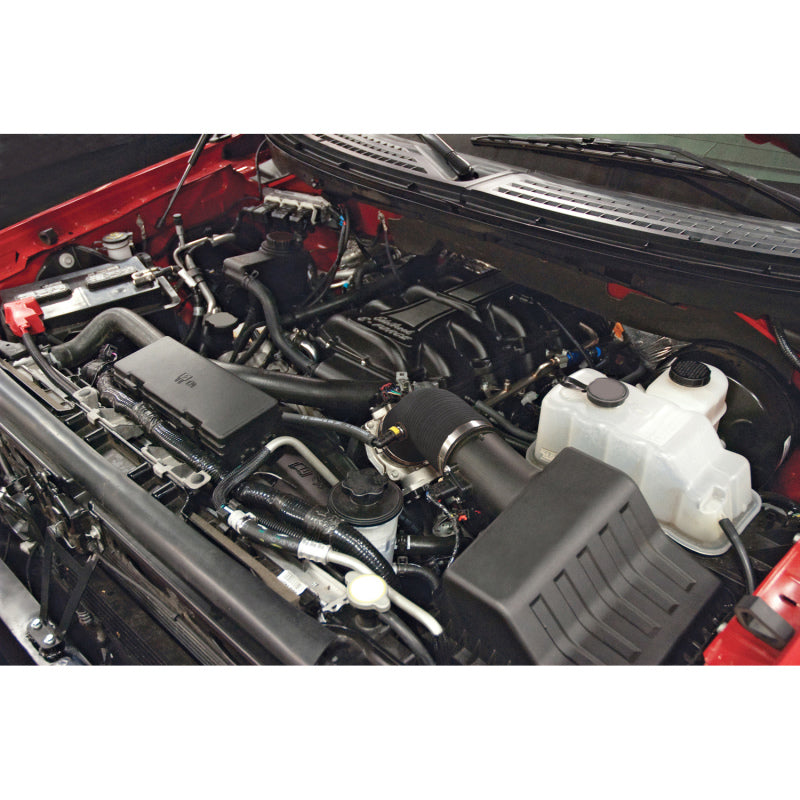

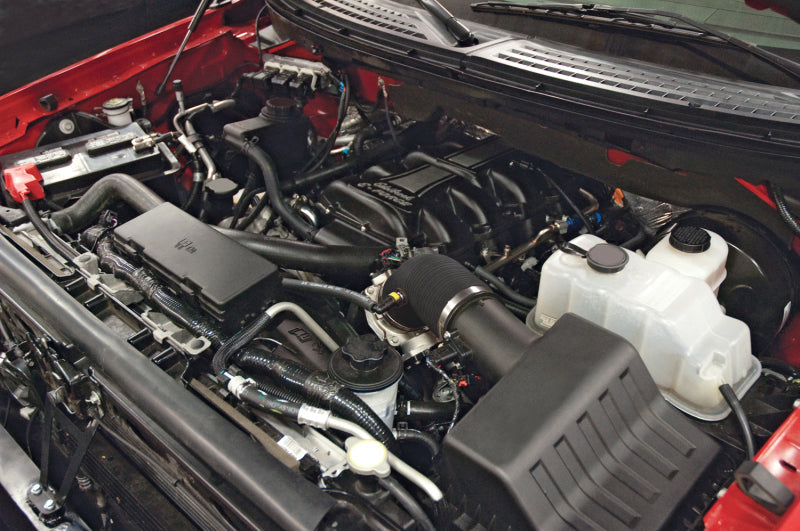

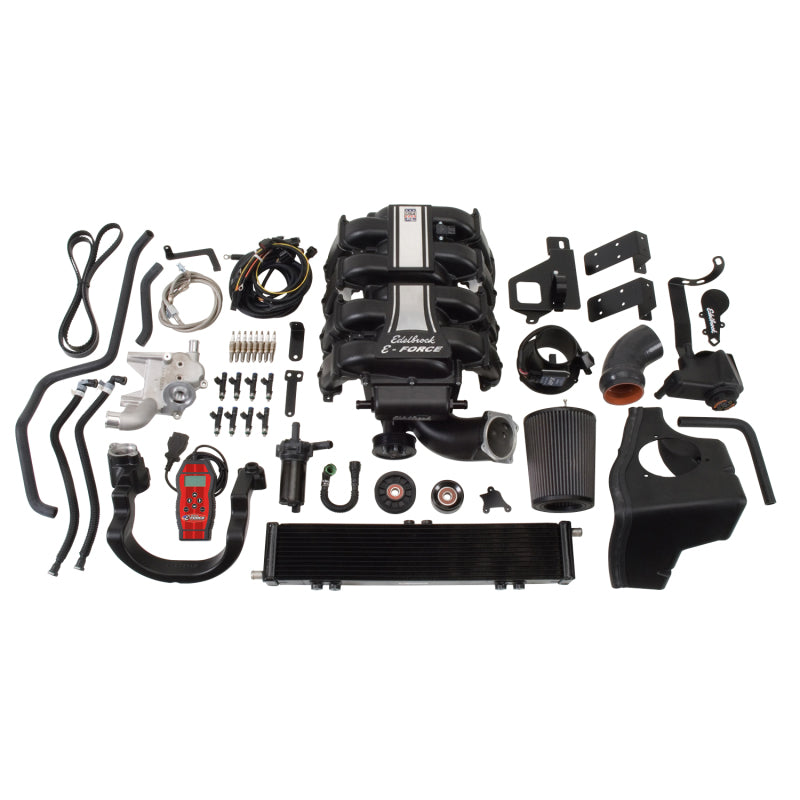

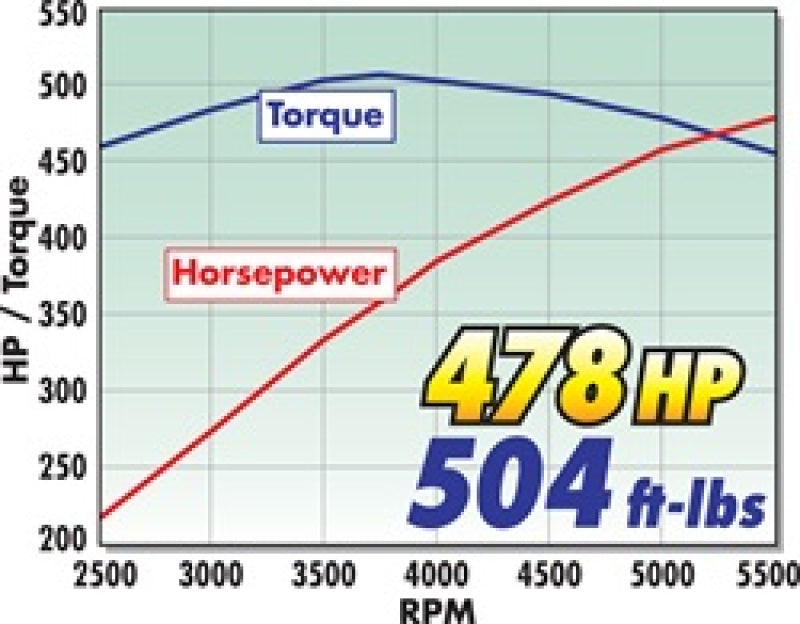

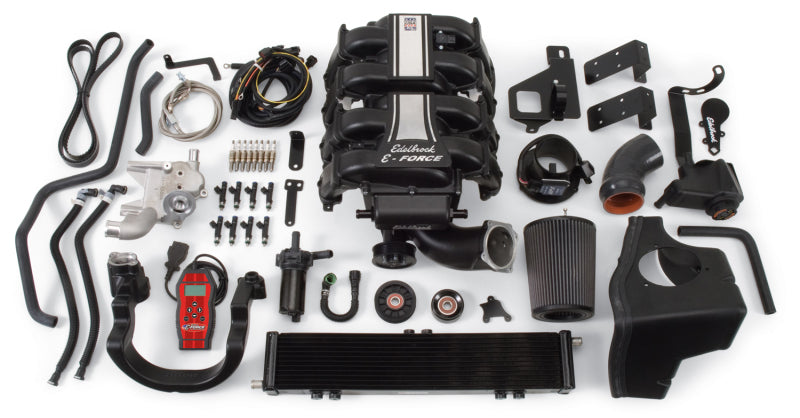

• The Edelbrock supercharger Stage 1 Street system part #1581 for 2004-08 2-Wheel Drive Ford F-150 Trucks increases the performance of your 5.4L 3V engine to 478 horsepower and 504 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1581 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
• The Edelbrock supercharger Stage 1 Street system part #1581 for 2004-08 2-Wheel Drive Ford F-150 Trucks increases the performance of your 5.4L 3V engine to 478 horsepower and 504 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.The Edelbrock #1581 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Product Description - Extended

• The Edelbrock Supercharger System part #1581 is for the2004-08 Ford F-150 2WD 5.4L 3V. This kit produces 478 horsepower and 504 ft-lbs of torque.
• S/C ASSY 2004-08 5.4L 3V FORD F-150 2 WD INVERTED

Shipping Restrictions

{ eo : 1in.; eo_carb_number : D-215-89in.; eo_carb_link : https:/ww3.arb.ca.gov/msprog/aftermkt/devices/eo/d-215-89.pdf }

Key Search Words

Edelbrock; Supercharger; Edelbrock; F-150; V8; 5.0L; Engine; Ford;2008; 2009; 2007; 2006; 2005; 2004; 1581

Product Description - Short

• Edelbrock Supercharger Stage 1 - Street Kit 2004-2008 Ford F-150 5 4L 3V w/ Tuner
• SUPERCHARGER

Label Description

• Edelbrock Stage 1 Supercharger Kit #1581 For 2004-08 Ford F-150 5.4L 3V W/ Tune
• Edelbrock Stage 1 Supercharger Kit #1581 For 2004-08 Ford F-150 5.4L 3V W/Tune

Product Description - Long

• E-Force Supercharger for 2004-08 Ford F-150 5.4L 3V
• E-Force Stage-1 Street Systems Supercharger

Features and Benefits

Little To No Decrease In Fuel Economy

Product Description - Invoice

Edelbrock supercharger #1581

Application Summary

Ford:Modular 3V:330 (5.4L)

AAIA Part Type Description

Supercharger Kit

Product Description - Abbreviated

SuperchrgrKt
