ICON 2017+ Ford F250/F350 7in Stage 4 Suspension System w/ Radius Arm

Manufacturer Part # : K67114R

Market Description

• This ICON Vehicle Dynamics 7” suspension system is a great way to lift your 4WD 2017-2022 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. This suspension system is perfect for on-road and off-road use including towing, job site duty, and hardcore off-road adventure. ICON's 7" Stage 4 System is comprised of dual rate coil springs, progressive leaf springs, 4-Link kit, adjustable track bar, dual opposing steering stabilizer kit, ICON 2.5 Aluminum Series piggyback reservoir front and rear shocks, plus all of the necessary hardware for installation.

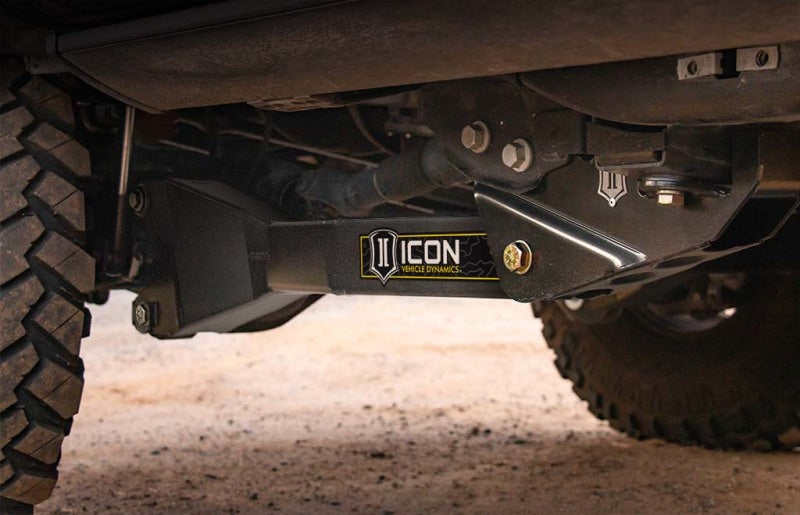

• This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

Associated Comments

• TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height of 6.75" over stock. May require taller rear blocks with springs to sit level.
• TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height of 7.75" over stock. May require taller rear blocks with springs to sit level.
• APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #57: FACTORY BLOCK MUST BE USED IN CONJUNCTION WITH ICON LEAF SPRINGS FOR TRUCK TO SIT LEVEL.
• APPLICATION NOTE #118: OEM STABILIZER DOES NOT WORK WITH REQUIRED DRAG LINK FLIP ON THIS KIT
• APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
• TECH NOTE: 2017-2019 Super Duty models will have front lift height of 7" over stock.
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• OEM Wheels & Tires Fitment: Yes
• Ships in multiple boxes

Features and Benefits

• Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Progressive leaf springs improve ride quality without reducing towing capacity
• FK Rod End bearings provide extended longevity and minimal deflection
• Approximately 50% increased front wheel travel over stock
• Lifetime guarantee against coil spring breakage or sag
• Fits 2017-2022 F-250 / F-350 4WD applications
• Shocks are fully rebuildable and revalvable

Product Description - Extended

• 2017-2022 FORD F-250/F-350 SUPER DUTY 7" LIFT STAGE 4 SUSPENSION SYSTEM WITH RADIUS ARM
• 2017-UP FORD F-250/F-350 SUPER DUTY 7" LIFT STAGE 4 SUSPENSION SYSTEM WITH RADIUS ARM

Product Description - Short

• ICON 2017+ Ford F250/F350 7in Stage 4 Suspension System w/ Radius Arm
• SUSPENSION SYSTEM

Product Description - Long

• 17-UP FORD F250/F350 7" STAGE 4 SUSPENSION SYSTEM W RADIUS ARM
• 17-22 FORD F250/F350 7" STAGE 4 SUSPENSION SYSTEM W RADIUS ARM

Product Description - Invoice

• 17-UP FSD 7" STAGE 4 SUSP SYS RADIUS ARM
• 17-22 FSD 7" STAGE 4 SUSP SYS RADIUS ARM

AAIA Part Type Description

Suspension Lift Kit
