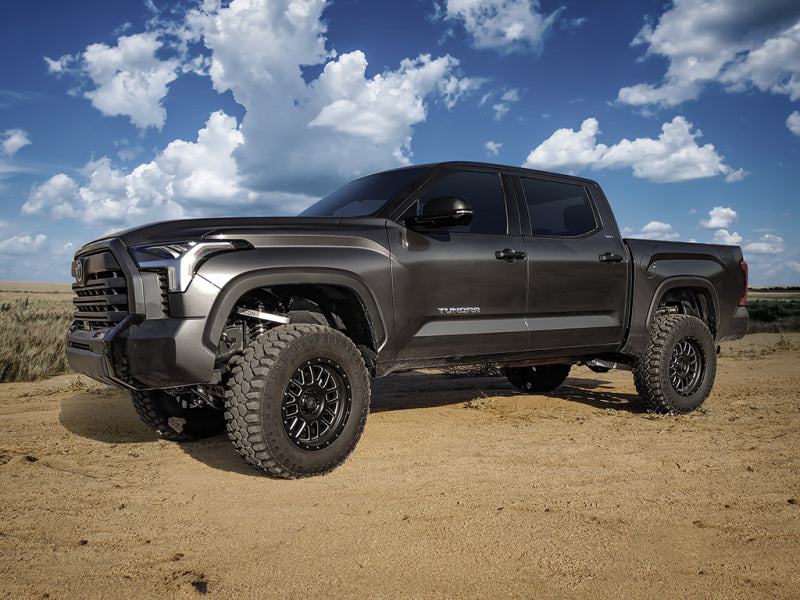

ICON 22-23 Toyota Tundra 6in Stage 3 Suspension System Tubular UCA

Manufacturer Part # : K53273T

Associated Comments

• APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
• TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.
• TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• TECH NOTE: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
• APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
• TECH NOTE: Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.
• TECH NOTE: Requires minimum of 20" diameter wheels
• OEM Wheels & Tires Fitment: No

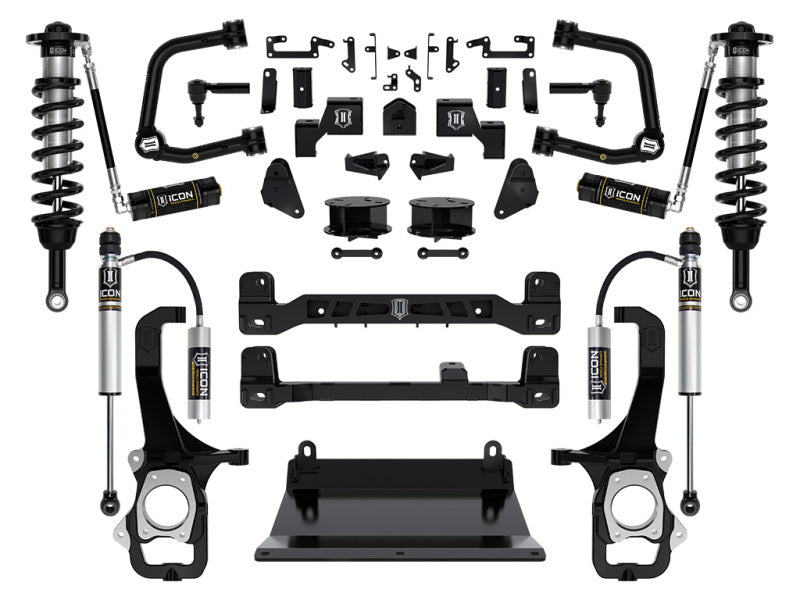

Features and Benefits

• 2.0 Aluminum Series rear shocks with remote reservoirs provide balanced tune with the front coilovers and increased fluid volume for better heat dissipation
• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• Maintains factory track width

Product Description - Short

• ICON 22-23 Toyota Tundra 6in Stage 3 Suspension System Tubular UCA
• SUSPENSION SYSTEM

Product Description - Long

22-24 TOYOTA TUNDRA 6" STAGE 3 SUSPENSION SYSTEM TUBULAR UCA

AAIA Part Type Description

Suspension Lift Kit

Product Description - Invoice

K53273T
